Case control atrophy mapping in temporal lobe epilepsy vs healthy controls (TLE-HC)
Overview
This notebook will examine morphological features of the hippocampus in TLE patients. We compare the ipsilateral foci hippocampi to contralateral, and to age-matched controls.
[1]:
import numpy as np
import matplotlib.pyplot as plt
import nibabel as nib
import hippomaps as hm
import pandas as pd
[2]:
hippunfold_dir = '../../publication-hippomaps/hippunfold/MICs_v1.3.0/hippunfold'
hemis = ['L','R']
labels = ['hipp']#,'dentate']
den = '0p5mm'
# get expected number of vertices and their indices
nV,iV = hm.config.get_nVertices(labels,den)
# loop through these types of structural images
features = ['thickness','gyrification','curvature','surfarea']
[3]:
PX = pd.read_csv(f'../../publication-hippomaps/hippunfold/participants_MICs_PX.csv', delimiter=',')
PX
[3]:
ID | SES | AGE | SEX | SITE | group | pathology | T1W | QT1 | FLAIR | DWI | |
---|---|---|---|---|---|---|---|---|---|---|---|
0 | sub-PX003 | ses-01 | 54 | M | 1 | Patient | Left TLE | 1 | 1 | 0 | 1 |
1 | sub-PX005 | ses-01 | 26 | F | 1 | Patient | Left TLE | 1 | 1 | 0 | 1 |
2 | sub-PX012 | ses-03 | 36 | F | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
3 | sub-PX013 | ses-01 | 57 | M | 1 | Patient | Left TLE | 1 | 1 | 0 | 1 |
4 | sub-PX016 | ses-01 | 41 | F | 1 | Patient | Right TLE | 1 | 1 | 0 | 1 |
5 | sub-PX019 | ses-01 | 31 | M | 1 | Patient | Left TLE | 1 | 1 | 0 | 1 |
6 | sub-PX020 | ses-02 | 54 | M | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
7 | sub-PX021 | ses-01 | 55 | F | 1 | Patient | Left TLE | 1 | 1 | 0 | 1 |
8 | sub-PX024 | ses-01 | 26 | F | 1 | Patient | Left TLE | 1 | 0 | 0 | 1 |
9 | sub-PX025 | ses-02 | 27 | M | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
10 | sub-PX026 | ses-01 | 52 | F | 1 | Patient | Right TLE | 1 | 1 | 0 | 0 |
11 | sub-PX028 | ses-01 | 22 | F | 1 | Patient | Right TLE | 1 | 1 | 0 | 1 |
12 | sub-PX032 | ses-01 | 53 | F | 1 | Patient | Left TLE | 1 | 1 | 0 | 1 |
13 | sub-PX036 | ses-02 | 26 | M | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
14 | sub-PX042 | ses-01 | 38 | M | 1 | Patient | Left TLE | 1 | 1 | 0 | 1 |
15 | sub-PX043 | ses-02 | 40 | F | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
16 | sub-PX044 | ses-01 | 43 | M | 1 | Patient | Right TLE | 1 | 1 | 0 | 1 |
17 | sub-PX047 | ses-01 | 35 | M | 1 | Patient | Left TLE | 1 | 1 | 0 | 1 |
18 | sub-PX053 | ses-01 | 41 | M | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
19 | sub-PX055 | ses-01 | 27 | F | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
20 | sub-PX060 | ses-01 | 25 | F | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
21 | sub-PX061 | ses-01 | 39 | F | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
22 | sub-PX062 | ses-01 | 44 | M | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
23 | sub-PX063 | ses-01 | 28 | M | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
24 | sub-PX065 | ses-01 | 29 | M | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
25 | sub-PX067 | ses-01 | 39 | M | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
26 | sub-PX068 | ses-01 | 54 | M | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
27 | sub-PX069 | ses-01 | 39 | F | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
28 | sub-PX070 | ses-01 | 36 | F | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
29 | sub-PX072 | ses-01 | 43 | F | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
30 | sub-PX075 | ses-01 | 18 | F | 1 | Patient | Left TLE | 1 | 1 | 1 | 1 |
31 | sub-PX079 | ses-01 | 32 | F | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
32 | sub-PX087 | ses-01 | 29 | F | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
33 | sub-PX088 | ses-01 | 56 | M | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
34 | sub-PX094 | ses-01 | 63 | M | 1 | Patient | Right TLE | 1 | 1 | 1 | 1 |
[15]:
print(f"mean age: {np.mean(PX['AGE'])} +/- {np.std(PX['AGE'])}")
print(f"M/F: {np.sum(PX['SEX']=='M')}/{np.sum(PX['SEX']=='F')}")
print(f"L/R: {np.sum(PX['pathology']=='Right TLE')}/{np.sum(PX['pathology']=='Left TLE')}")
mean age: 38.8 +/- 11.63688716354777
M/F: 17/18
L/R: 15/20
[14]:
PX['pathology'][0]
[14]:
'Left TLE'
[5]:
# Load data
hipp_dat = np.zeros([nV,len(hemis),len(PX['ID']),len(features)])*np.nan
# Preprocess
# Profile align the depths of each column (as in https://github.com/jordandekraker/hippomaps/blob/master/tutorials/Histology-MRI-9p4T.ipynb)
for f,feature in enumerate(features):
for s,sub in enumerate(PX['ID']):
for h,hemi in enumerate(hemis):
for l,label in enumerate(labels):
ses = PX['SES'][s]
if PX['pathology'][s][0] == hemi:
ic = 0 # always put ipsi first
else:
ic=1 # contra second
fn = f'{hippunfold_dir}/{sub}/{ses}/surf/{sub}_{ses}_hemi-{hemi}_space-T1w_den-{den}_label-{label}_{feature}.shape.gii'
if feature=='curvature' and hemi == 'R':
hipp_dat[iV[l],ic,s,f] = -nib.load(fn).darrays[0].data
else:
hipp_dat[iV[l],ic,s,f] = nib.load(fn).darrays[0].data
[9]:
HC = pd.read_csv(f'../../publication-hippomaps/hippunfold/participants_MICs_HC.csv', delimiter=',')
HC
[9]:
ID | SES | AGE | SEX | SITE | group | pathology | T1W | QT1 | FLAIR | DWI | |
---|---|---|---|---|---|---|---|---|---|---|---|
0 | sub-HC005 | ses-02 | 27.0 | M | MICs | Control | NaN | 1 | 1 | 1 | 1 |
1 | sub-HC009 | ses-02 | 34.0 | F | MICs | Control | NaN | 1 | 1 | 1 | 1 |
2 | sub-HC010 | ses-03 | 40.0 | M | MICs | Control | NaN | 1 | 1 | 1 | 1 |
3 | sub-HC012 | ses-03 | 30.0 | F | MICs | Control | NaN | 1 | 1 | 1 | 1 |
4 | sub-HC016 | ses-02 | 33.0 | M | MICs | Control | NaN | 1 | 1 | 1 | 1 |
... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
76 | sub-HC039 | ses-01 | 40.0 | F | MICs | Control | NaN | 1 | 1 | 1 | 0 |
77 | sub-HC049 | ses-01 | 41.0 | M | MICs | Control | NaN | 1 | 1 | 1 | 0 |
78 | sub-HC053 | ses-01 | 58.0 | M | MICs | Control | NaN | 1 | 1 | 1 | 0 |
79 | sub-HC057 | ses-01 | 37.0 | M | MICs | Control | NaN | 1 | 1 | 1 | 0 |
80 | sub-HC070 | ses-01 | 60.0 | F | MICs | Control | NaN | 1 | 1 | 1 | 0 |
81 rows × 11 columns
[12]:
print(f"mean age: {np.mean(HC['AGE'])} +/- {np.std(HC['AGE'])}")
print(f"M/F: {np.sum(HC['SEX']=='M')}/{np.sum(HC['SEX']=='F')}")
mean age: 32.9375 +/- 12.031566554277127
M/F: 42/39
[7]:
# Load data
hipp_dat_HC = np.zeros([nV,len(hemis),len(HC['ID']),len(features)])*np.nan
# Preprocess
# Profile align the depths of each column (as in https://github.com/jordandekraker/hippomaps/blob/master/tutorials/Histology-MRI-9p4T.ipynb)
for f,feature in enumerate(features):
for s,sub in enumerate(HC['ID']):
for h,hemi in enumerate(hemis):
for l,label in enumerate(labels):
ses = HC['SES'][s]
fn = f'{hippunfold_dir}/{sub}/{ses}/surf/{sub}_{ses}_hemi-{hemi}_space-T1w_den-{den}_label-{label}_{feature}.shape.gii'
if feature=='curvature' and hemi == 'R':
hipp_dat_HC[iV[l],h,s,f] = -nib.load(fn).darrays[0].data
else:
hipp_dat_HC[iV[l],h,s,f] = nib.load(fn).darrays[0].data

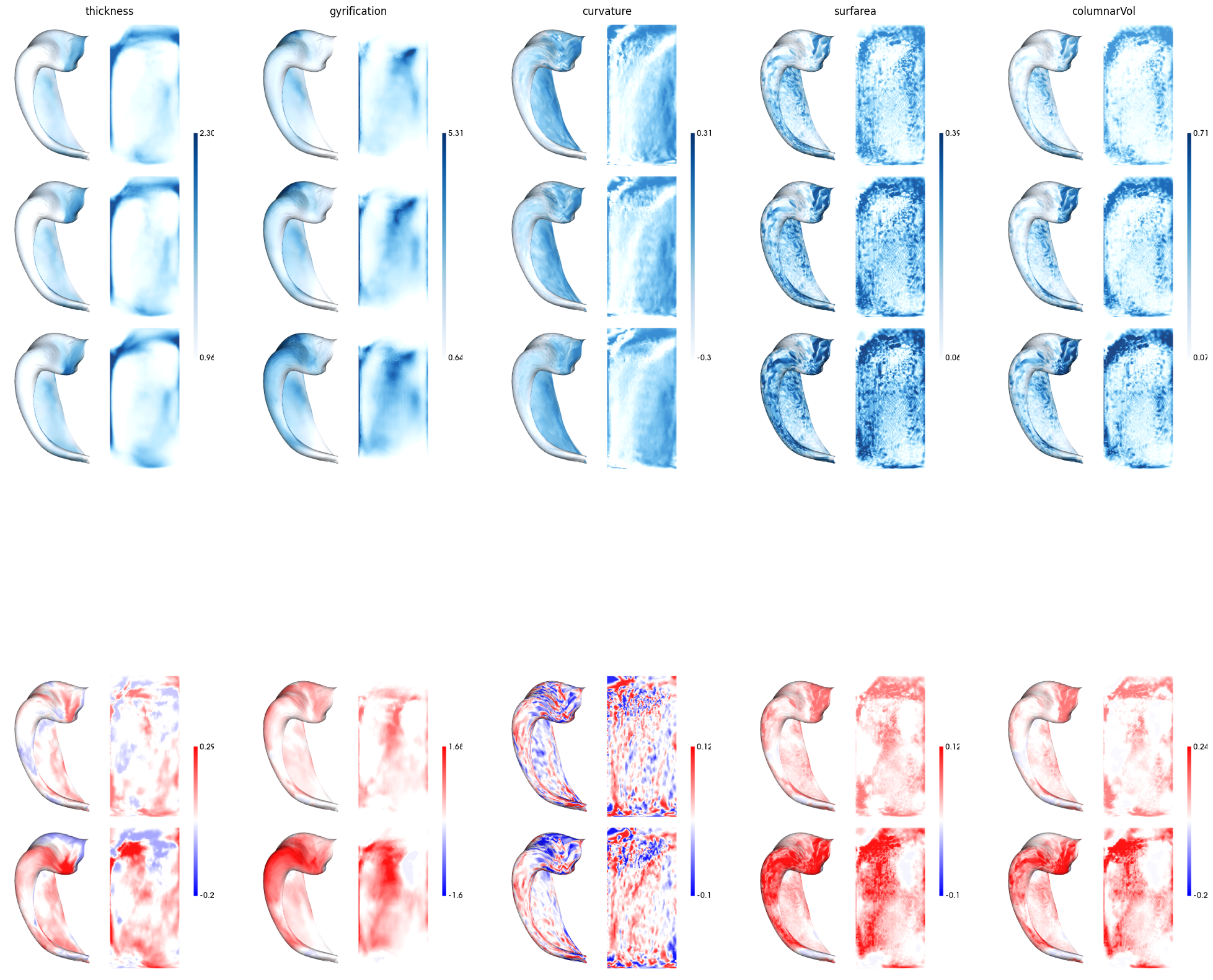

1) plot group-averages
Here we plot averages of the ipsilateral seizure focus, contralalteral, and healthy controls. We then compare ipsilateral to contralalteral (an asymmetry analysis) and ipsilateral to controls (case-control differences). Asymmetry is nice since it includes perfect matching on things like demographics, etc., but in cases with severe epilepsy there can also be abnormalities or secondary epileptogenic zones in the contralateral hemisphere as well. Case-control differences are less closely matched, but we can be confident that the HC data is normative.
[8]:
# Here we calculate and add a new feature: columnar volume. This is simply thicknes (mm) * surface area (mm2) giving a units in mm3.
coolumnar_volume = hipp_dat[:,:,:,0]*hipp_dat[:,:,:,3]
hipp_dat = np.concatenate((hipp_dat,coolumnar_volume.reshape([nV,len(hemis),len(PX['ID']),1])),axis=3)
coolumnar_volume = hipp_dat_HC[:,:,:,0]*hipp_dat_HC[:,:,:,3]
hipp_dat_HC = np.concatenate((hipp_dat_HC,coolumnar_volume.reshape([nV,len(hemis),len(HC['ID']),1])),axis=3)
features.append('columnarVol')
[9]:
ipsilateral = np.mean(hipp_dat[:,0,:,:], axis=1)
contralateral = np.mean(hipp_dat[:,1,:,:], axis=1)
ctrl = np.mean(hipp_dat_HC,axis=(1,2))
asymmetry = contralateral-ipsilateral
caseCtrl = ctrl-ipsilateral
cdata1 = np.stack((ipsilateral,contralateral,ctrl),axis=2) # these will share color range
cdata2 = np.stack((asymmetry,caseCtrl),axis=2) # these will share their own separate color range
# plot altogether
fig, ax = plt.subplots(2,5, figsize=(25,25))
for f in range(5):
hm.plotting.surfplot_canonical_foldunfold(cdata1[:,f,:], color_bar=('right'), hemis=['L'], labels=['hipp'], cmap='Blues', color_range='sym', unfoldAPrescale=True, share='both', tighten_cwindow=True, embed_nb=True, screenshot=True, filename='tmp.png')
i = plt.imread('tmp.png')
ax[0,f].imshow(i)
ax[0,f].set_axis_off()
ax[0,f].set_anchor("NW")
ax[0,f].set_title(features[f])
hm.plotting.surfplot_canonical_foldunfold(cdata2[:,f,:], color_bar=('right'), hemis=['L'], labels=['hipp'], cmap='bwr', color_range='sym', unfoldAPrescale=True, share='both', tighten_cwindow=True, embed_nb=True, screenshot=True, filename='tmp.png')
i = plt.imread('tmp.png')
ax[1,f].imshow(i)
ax[1,f].set_axis_off()
ax[1,f].set_anchor("NW")
!rm tmp.png
[ ]:
hm.plotting.surfplot_canonical_foldunfold(cdata1[:,f,:], color_bar=('right'), hemis=['L'], labels=['hipp'], cmap='Blues', color_range='sym', unfoldAPrescale=True, share='both', tighten_cwindow=True, embed_nb=True, screenshot=True, filename='tmp.png')
2) Examine inter-patient (ipsilateral) consistency
Here, we focus only on case-control differences for each ipsilateral hippocampus to the control average.
[14]:
from scipy.stats import ttest_1samp
# make a histogram of the off-diagonal cross-patient correlations
mfcorr = []
sdfcorr = []
fig, ax = plt.subplots(nrows=1, ncols=len(features), figsize=(3*len(features),3))
for f,feature in enumerate(features):
cdat = (ctrl[:,f]-hipp_dat[:,0,:,f].T).T
corr = np.corrcoef(cdat.T) # as above 2
fcorr = corr[np.triu_indices(20,k=1)] # this return only the off-diagonal (lower left triangle)
print(ttest_1samp(fcorr,0,nan_policy='omit'))
ax[f].hist(fcorr) # make a histogram for this particular feature
mfcorr.append(np.mean(fcorr))
sdfcorr.append(np.std(fcorr))
Ttest_1sampResult(statistic=4.876997145961731, pvalue=2.278470962511645e-06)
Ttest_1sampResult(statistic=6.4575080753712335, pvalue=8.76151025412419e-10)
Ttest_1sampResult(statistic=15.186544536003135, pvalue=1.431884784956529e-34)
Ttest_1sampResult(statistic=6.88452310563634, pvalue=8.317160023756746e-11)
Ttest_1sampResult(statistic=6.688206318715512, pvalue=2.4820341157259765e-10)
[15]:

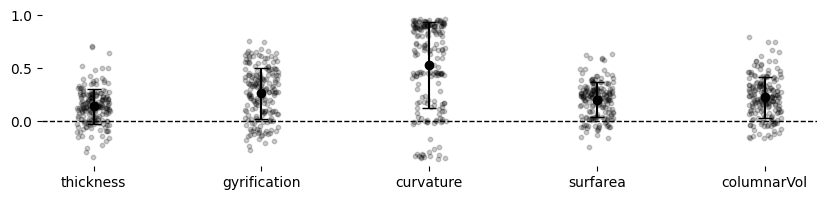

# instead of histograms, we will show a bar plot of the average and standard deviation
fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(3*len(features),3))
plt.bar(range(len(features)),mfcorr)
plt.errorbar(range(len(features)),mfcorr, yerr=sdfcorr, fmt=".")
plt.xticks(ticks=range(len(features)),labels=features,rotation=30)
plt.ylim([0,.4]);
3) Contextualize with other maps
[91]:
topFeatures, topR, topP, APcorr, Subfscorr, ax = hm.stats.contextualize2D(asymmetry, nperm=1000) # ideally nperm should be 10000
print(topFeatures)
print(topR)
print(topP)
[['MRI-3T-rsfMRI-IntTS' 'MRI-7T-ADC' 'MRI-3T-rsfMRI-avgFCneocort']
['MRI-7T-gyrification' 'histology-gyrification' 'iEEG-BandPower-delta']
['MRI-7T-ADC' 'MRI-7T-FA' 'MRI-7T-qT1']
['histology-Parvalbumin' 'MRI-7T-ADC' 'MRI-3T-rsfMRI-IntTS']
['histology-Parvalbumin' 'MRI-7T-ADC' 'MRI-3T-rsfMRI-IntTS']]
[[ 0.29042015 0.28139226 0.24666882]
[ 0.42963204 0.40083605 0.31847284]
[ 0.03895964 -0.03567171 0.03168604]
[ 0.30704696 0.27560222 0.24758442]
[ 0.26536365 0.24291992 0.24154682]]
[[0.001 0.008 0.01 ]
[0. 0. 0.02 ]
[0.008 0.014 0.009]
[0.001 0.01 0.031]
[0.01 0.012 0.023]]
[92]:
topFeatures, topR, topP, APcorr, Subfscorr, ax = hm.stats.contextualize2D(caseCtrl, nperm=1000) # ideally nperm should be 10000
print(topFeatures)
print(topR)
print(topP)
[['MRI-3T-rsfMRI-IntTS' 'MRI-3T-rsfMRI-avgFCneocort'
'histology-Bieloschowsky']
['MRI-7T-gyrification' 'iEEG-BandPower-delta' 'histology-gyrification']
['MRI-3T-rsfMRI-IntTS' 'MRI-7T-ADC' 'iEEG-BandPower-gamma']
['MRI-7T-ADC' 'MRI-7T-MTR' 'histology-Parvalbumin']
['MRI-7T-ADC' 'histology-Parvalbumin' 'MRI-7T-MTR']]
[[0.29209891 0.29180742 0.27980856]
[0.50941525 0.44602646 0.43197429]
[0.06510822 0.05809238 0.05719323]
[0.39753283 0.36754286 0.33102012]
[0.32614747 0.30467817 0.30162154]]
[[0.005 0.012 0.024]
[0. 0.003 0. ]
[0.035 0.042 0.096]
[0. 0.004 0.009]
[0.003 0.009 0.008]]
save
[12]:
# save a copy of the 2D map
for f,feature in enumerate(features):
for h,hemi in enumerate(hemis):
for l,label in enumerate(labels):
cdat = caseCtrl[:,f]
data_array = nib.gifti.GiftiDataArray(data=cdat)
image = nib.gifti.GiftiImage()
image.add_gifti_data_array(data_array)
nib.save(image, f'../../publication-hippomaps/maps/HippoMaps-initializationMaps/Dataset-MICs/MRI-3T-MRI-TLE-case-control-{feature}_average-{len(PX)}_hemi-mix_den-2mm_label-{label}.shape.gii')
[ ]:
