MRI-3T-taskfMRI
Overview
This tutorial will differ from the others, in that it can’t be run using only checkpoint data but rather requires the original datasets. This is because different subjects have a different number of volumes (or TRs) depending on how long it took them to complete the tasks. Each subject will also have an events.tsv file indicating trial onset times and responses. Thus, this tutorial cannot easily be run online, but we include it here as an illustrative example nonetheless.
section 1) will deal with the Mneumonic Similarity Task (MST). This will involve 1.1) A full walkthrough of one subject analysis, and then looping over subjects, 1.2) Plotting group-level data and significance testing, 1.3) Applying the same to the neocortex instead of hippocampus, and 1.4) Contextualizing resulting hippocampal maps by direct spatial correlation to other HippoMaps features
We will then apply the same steps to 2) an item-pairing task retrieval phase and 3) the same task encoding phase
[9]:
import numpy as np
import matplotlib.pyplot as plt
import nibabel as nib
import hippomaps as hm
import pandas as pd
import nilearn
from nilearn.glm.first_level import make_first_level_design_matrix
from nilearn.glm.first_level import run_glm
from nilearn.glm.contrasts import compute_contrast
from brainspace.mesh.mesh_io import read_surface
from brainspace.plotting import plot_hemispheres
from brainspace.datasets import load_group_fc, load_parcellation, load_conte69
from brainspace.utils.parcellation import map_to_labels
import glob
from scipy.stats import ttest_1samp
[2]:
# locate input data
ses = '01'
micapipe_dir = '/data/mica3/BIDS_MICs/derivatives/micapipe_v0.2.0'
micapipe_raw = '/data/mica3/BIDS_MICs/rawdata/' # this we need for the events.tsv files
hippunfold_dir = '/data/mica3/BIDS_MICs/derivatives/hippunfold_v1.3.0/hippunfold'
# define which subjects and surfaces to examine
subs = [
'HC001', 'HC002', 'HC005', 'HC006', 'HC007', 'HC011', 'HC012', 'HC013', 'HC014', 'HC015',
'HC016', 'HC017', 'HC018', 'HC019', 'HC020', 'HC021', 'HC022', 'HC023', 'HC025', 'HC026',
'HC027', 'HC028', 'HC029', 'HC030', 'HC031', 'HC032', 'HC033', 'HC034', 'HC035', 'HC036',
'HC037', 'HC038', 'HC039', 'HC040', 'HC041', 'HC042', 'HC043', 'HC044', 'HC045', 'HC046',
'HC047', 'HC048', 'HC049', 'HC050', 'HC051', 'HC052', 'HC053', 'HC054', 'HC055', 'HC056',
'HC057', 'HC058', 'HC059', 'HC060', 'HC061', 'HC063', 'HC065', 'HC067', 'HC068', 'HC069',
'HC070', 'HC071', 'HC072', 'HC074', 'HC075', 'HC077', 'HC078', 'HC081', 'HC082', 'HC084',
'HC086', 'HC087', 'HC088', 'HC089', 'HC090', 'HC093', 'HC097', 'HC100', 'HC024', 'HC064',
'HC073', 'HC101']
hemis = ['L','R']
labels = ['hipp']# ,'dentate']
den='2mm'
sigma = 1 # Gaussian smoothing kernal sigma (mm) to apply to surface data
TR = 0.6 # repetition time (seconds)
tasks= ['MST2', 'encoding','retrieval']
slice_time_ref = 0.0
# get expected number of vertices and their indices
nV,iV = hm.config.get_nVertices(labels,den)
# Load neocortical surfaces for visualzation (assets from micapipe)
parcL = nib.load('/data/mica1/01_programs/micapipe-v0.2.0/parcellations/schaefer-400_conte69_lh.label.gii').darrays[0].data
parcR = nib.load('/data/mica1/01_programs/micapipe-v0.2.0/parcellations/schaefer-400_conte69_rh.label.gii').darrays[0].data
nP = len(np.unique(parcL))-1 # number of neocortical parcels (one hemisphere)
iP = [range(nP),range(nP,nP*2)]
parc = np.concatenate((parcL,parcR))
c69_inf_lh= read_surface('/data/mica1/01_programs/micapipe-v0.2.0/surfaces/fsLR-32k.L.inflated.surf.gii', itype='gii')
c69_inf_rh = read_surface('/data/mica1/01_programs/micapipe-v0.2.0/surfaces/fsLR-32k.R.inflated.surf.gii', itype='gii')
labels_c69 = load_parcellation('schaefer', scale=400, join=True)
0) Map data to hippocampal surface
In this example, we loop through subjects and hemispheres, and sample volumetric timeseries data onto hippocampal surfaces. We then apply smoothing. Finally, we save the data from all surfaces into .func.gii
files.
NOTE: here we save surface fMRI data into a surf/task-fMRI/
directory within our hippunfold directory. Depending on your lab organization, it may be best to never write project-specific outputs into a shared processed dataset, so consider writing to your own directory instead!
[ ]:
!mkdir -p tmp
for sub in subs:
for task in tasks:
!{f'mkdir -p {hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{task}'}
# convert affines
cmd1a = f'c3d_affine_tool '\
f'-itk {micapipe_dir}/sub-{sub}/ses-{ses}/xfm/sub-{sub}_ses-{ses}_from-se_task-{task}_acq-AP_bold_to-nativepro_mode-image_desc-affine_0GenericAffine.mat '\
f'-o {tmp_dir}/sub-{sub}_ses-{ses}_tmp0GenericAffine0.txt'
!{cmd1a}
cmd1b = f'c3d_affine_tool '\
f'-itk {micapipe_dir}/sub-{sub}/ses-{ses}/xfm/sub-{sub}_ses-{ses}_from-nativepro_func_to-se_task-{task}_acq-AP_bold_mode-image_desc-SyN_0GenericAffine.mat '\
f'-inv '\
f'-o {tmp_dir}/sub-{sub}_ses-{ses}_tmp0GenericAffine1.txt'
!{cmd1b}
for h,hemi in enumerate(hemis):
for l,label in enumerate(labels):
if not glob.glob(f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{task}/sub-{sub}_ses-{ses}_hemi-{hemi}_space-T1w_den-2mm_label-{label}_{task}_smooth-{sigma}mm.func.gii'):
#apply affines
cmd2a = f'wb_command -surface-apply-affine '\
f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/sub-{sub}_ses-{ses}_hemi-{hemi}_space-T1w_den-0p5mm_label-{label}_midthickness.surf.gii '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_tmp0GenericAffine0.txt '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_aff0.surf.gii'
!{cmd2a}
cmd2b = f'wb_command -surface-apply-affine '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_aff0.surf.gii '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_tmp0GenericAffine1.txt '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_aff1.surf.gii'
!{cmd2b}
# apply warp (Note this is actually the INVERSE warp)
cmd3 = f'wb_command -surface-apply-warpfield '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_aff1.surf.gii '\
f'{micapipe_dir}/sub-{sub}/ses-{ses}/xfm/sub-{sub}_ses-{ses}_from-nativepro_func_to-se_task-{task}_acq-AP_bold_mode-image_desc-SyN_1Warp.nii.gz '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_deform.surf.gii'
!{cmd3}
# sample
cmd4 = f'wb_command -volume-to-surface-mapping '\
f'{micapipe_dir}/sub-{sub}/ses-{ses}/func/desc-se_task-{task}_acq-AP_bold/volumetric/sub-{sub}_ses-{ses}_space-func_desc-se_preproc.nii.gz '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_deform.surf.gii '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_{task}.func.gii '\
f'-enclosing'
!{cmd4}
# smooth
cmd5 = f'wb_command -metric-smoothing '\
f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/sub-{sub}_ses-{ses}_hemi-{hemi}_space-T1w_den-0p5mm_label-{label}_midthickness.surf.gii '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_{task}.func.gii '\
f'{sigma} '\
f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_{task}_smooth.func.gii '
!{cmd5}
# downsample
func = nib.load(f'{tmp_dir}/sub-{sub}_ses-{ses}_{h}_{l}_{task}_smooth.func.gii')
out_array = np.ones((len(func.darrays),nV))
for k in range(len(func.darrays)):
data, f, v = hm.utils.density_interp('0p5mm', '2mm',func.darrays[k].data, label,'nearest')
out_array[k,:] = data
data_array = nib.gifti.GiftiDataArray(data=out_array)
image = nib.gifti.GiftiImage()
image.add_gifti_data_array(data_array)
nib.save(image, f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{task}/sub-{sub}_ses-{ses}_hemi-{hemi}_space-T1w_den-2mm_label-{label}_{task}_smooth-{sigma}mm.func.gii')
!rm -r tmp
1) Mnemonic Similarity Task (Pattern Separation)
1.1) GLM fit
First we will walk through how this can be done for one subject, and then we will loop through all subjects
[3]:
sub = subs[0] # first subject
current_task='MST2'
#list all possible combination of correct answer(target) and subject response
conditions = ['oldold', 'similarsimilar', 'newnew', 'oldsimilar', 'oldnew', 'similarold', 'similarnew', 'newold', 'newsimilar']
# load in regressors of no interest generated by micapipe
motion_reg = np.loadtxt(f'{micapipe_dir}/sub-{sub}/ses-{ses}/func/desc-se_task-MST2_acq-AP_bold/volumetric/sub-{sub}_ses-{ses}_space-func_desc-se.1D')
# Specify the timing of fmri frames
frame_times = TR * (np.arange(motion_reg.shape[0]) + slice_time_ref)

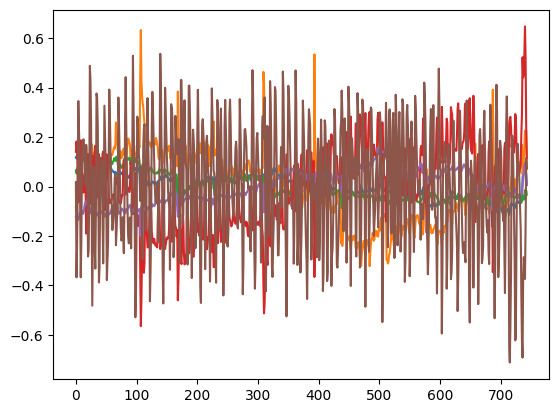

plt.plot(motion_reg);
[4]:
# create design matrix
# Load event files
events = pd.read_table(f'{micapipe_raw}/sub-{sub}/ses-{ses}/func/sub-{sub}_ses-{ses}_task-MST2_events.tsv')
df = events[['event_1_onset','event_1_duration','event_2_onset', 'event_2_duration','event_3_onset','response_time']]
# Recode events to have easy-to-read names
df = df.rename(columns={'event_1_onset': 'fixation', 'event_1_duration': 'fixation_dur','event_2_onset': 'onset', 'event_2_duration': 'duration','event_3_onset': 'keypress'})
# Combine response and condition to get all possible combinations
true_con = events['trial_type'] + events["subject response"].astype('str')
df['trial_type'] = true_con
print(df.to_string(max_rows=4))
design_matrix = make_first_level_design_matrix(frame_times,
events=df,
hrf_model='spm + derivative + dispersion',
add_regs=motion_reg)
# in some cases, there are no trials of a certain type (eg. someone never pressed "new" to and "old" stimulus.
# in this case add extra columns to the design matrix with all 0s
# this will help us look at all trial types later
for condition in conditions:
if condition not in design_matrix.columns:
# Create columns for condition, its derivatives, and dispersion
design_matrix[condition] = 0
design_matrix[f'{condition}_derivative'] = 0
design_matrix[f'{condition}_dispersion'] = 0

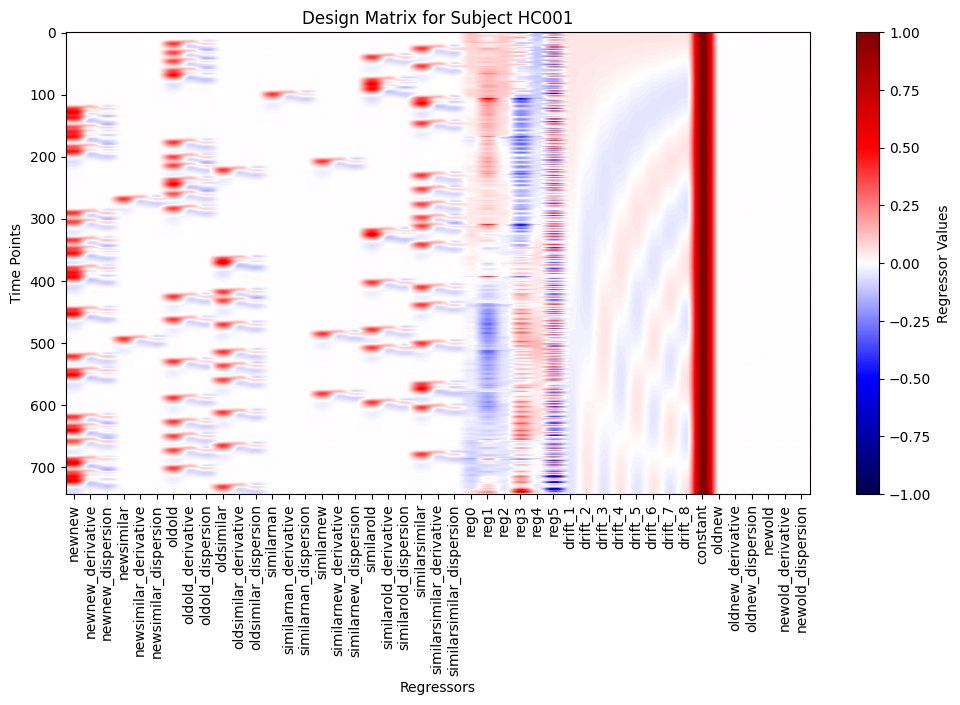

# plot design matrix
plt.figure(figsize=(12, 6))
plt.imshow(design_matrix.values, aspect='auto', cmap='seismic', vmin=-1, vmax=1)
plt.title(f'Design Matrix for Subject {sub}')
plt.xticks(range(len(design_matrix.columns)), design_matrix.columns, rotation=90)
plt.xlabel('Regressors')
plt.ylabel('Time Points')
plt.colorbar(label='Regressor Values')
plt.show()
fixation fixation_dur onset duration keypress response_time trial_type
0 2.030 2.826 4.856 2.0 6.445 1.589 oldold
1 6.857 2.718 9.576 2.0 11.357 1.781 similarsimilar
.. ... ... ... ... ... ... ...
94 425.902 2.218 428.120 2.0 429.039 0.919 newnew
95 430.122 3.019 433.141 2.0 434.602 1.461 oldsimilar
/export03/data/opt/venv/lib/python3.8/site-packages/nilearn/glm/first_level/experimental_paradigm.py:89: UserWarning: Unexpected column `fixation_dur` in events data will be ignored.
warnings.warn(("Unexpected column `{}` in events "
/export03/data/opt/venv/lib/python3.8/site-packages/nilearn/glm/first_level/experimental_paradigm.py:89: UserWarning: Unexpected column `response_time` in events data will be ignored.
warnings.warn(("Unexpected column `{}` in events "
/export03/data/opt/venv/lib/python3.8/site-packages/nilearn/glm/first_level/experimental_paradigm.py:89: UserWarning: Unexpected column `fixation` in events data will be ignored.
warnings.warn(("Unexpected column `{}` in events "
/export03/data/opt/venv/lib/python3.8/site-packages/nilearn/glm/first_level/experimental_paradigm.py:89: UserWarning: Unexpected column `keypress` in events data will be ignored.
warnings.warn(("Unexpected column `{}` in events "
[5]:
# define contrasts of interest
# nibabel expects contrasts to be defined as a dictionary. Here, we first make a dictionary of basic contrasts for each column of our design matrix (1 for that column, 0 for all others)
contrast_matrix = np.eye(design_matrix.shape[1])
basic_contrasts = dict([(column, contrast_matrix[i])
for i, column in enumerate(design_matrix.columns)])
# now we define actual contrasts of interest for each trial type, without subtracting any other trial type (i.e. uncorrected)
contrasts = {
'patternseparation_uncorrected': (
basic_contrasts['similarsimilar']
+ basic_contrasts['similarsimilar_derivative']
+ basic_contrasts['similarsimilar_dispersion']),
'patterncompletion_uncorrected': (
basic_contrasts['oldsimilar']
+ basic_contrasts['oldsimilar_derivative']
+ basic_contrasts['oldsimilar_dispersion']),
'noveltydetection_uncorrected': (
basic_contrasts['newnew']
+ basic_contrasts['newnew_derivative']
+ basic_contrasts['newnew_dispersion']),
# now we will subtract trials where the subject "failed" the trial type of interest
'patternseparation': (
basic_contrasts['similarsimilar']
- basic_contrasts['similarnew']
+ basic_contrasts['similarsimilar_derivative']
- basic_contrasts['similarnew_derivative']
+ basic_contrasts['similarsimilar_dispersion']
- basic_contrasts['similarnew_dispersion']),
'patterncompletion': (
basic_contrasts['oldsimilar']
- basic_contrasts['oldnew']
+ basic_contrasts['oldsimilar_derivative']
- basic_contrasts['oldnew_derivative']
+ basic_contrasts['oldsimilar_dispersion']
- basic_contrasts['oldnew_dispersion']),
'noveltydetection': (
basic_contrasts['newnew']
- 0.5*basic_contrasts['oldsimilar']
- 0.5*basic_contrasts['oldnew']
+ basic_contrasts['newnew_derivative']
- 0.5*basic_contrasts['oldsimilar_derivative']
- 0.5*basic_contrasts['oldnew_derivative']
+ basic_contrasts['newnew_dispersion']
- 0.5*basic_contrasts['oldsimilar_dispersion']
- 0.5*basic_contrasts['oldnew_dispersion'])}
contrasts
[5]:
{'patternseparation_uncorrected': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 1., 1., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
'patterncompletion_uncorrected': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 1., 1., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
'noveltydetection_uncorrected': array([1., 1., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
'patternseparation': array([ 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., -1., -1., -1., 0., 0., 0., 1., 1., 1., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0.]),
'patterncompletion': array([ 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 1., 1., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
-1., -1., -1., 0., 0., 0.]),
'noveltydetection': array([ 1. , 1. , 1. , 0. , 0. , 0. , 0. , 0. , 0. , -0.5, -0.5,
-0.5, 0. , 0. , 0. , 0. , 0. , 0. , 0. , 0. , 0. , 0. ,
0. , 0. , 0. , 0. , 0. , 0. , 0. , 0. , 0. , 0. , 0. ,
0. , 0. , 0. , 0. , 0. , 0. , -0.5, -0.5, -0.5, 0. , 0. ,
0. ])}

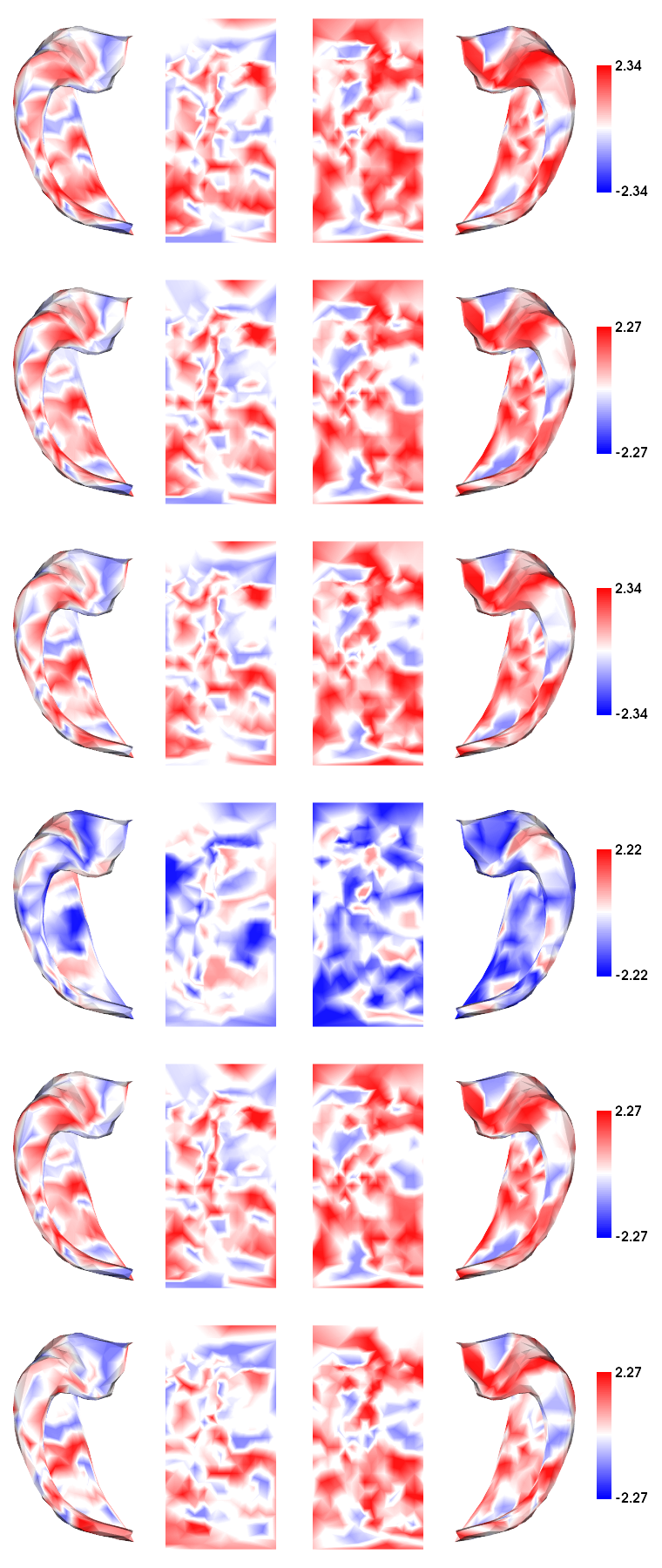

Now we’ll fit the actual data to the design matrix and run our contrasts of interest!
[ ]:
# Load the neocortical timeseries and parcellate to schaefer 400 space
fmri_img_neo = nib.load(f'{micapipe_dir}/sub-{sub}/ses-{ses}/func/desc-se_task-MST2_acq-AP_bold/surf/sub-{sub}_ses-{ses}_surf-fsLR-32k_desc-timeseries_clean.shape.gii').darrays[0].data
neo_ts_parc = np.ones((fmri_img_neo.shape[0], nP*2))
for i in range(nP*2):
neo_ts_parc[:, i] = np.nanmean(fmri_img_neo[:, parc == (i + 1)], axis=1)
# fit the design matrix to the data
labels_, estimates = run_glm(neo_ts_parc, design_matrix.values)
# run contrasts of interest
for index, (contrast_id, contrast_val) in enumerate(contrasts.items()):
# Compute contrast-related statistics
contrast = compute_contrast(labels_, estimates, contrast_val,
contrast_type='t')
# We present the Z-transform of the t map
z_score = contrast.z_score()
#create and save gifti images
for h,hemi in enumerate(hemis):
gii = nib.gifti.GiftiImage()
gii.add_gifti_data_array(nib.gifti.GiftiDataArray(data=z_score[iP[h]]))
nib.save(gii, f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{current_task}/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-schaefer-400_task-{current_task}_contrast-{contrast_id}.shape.gii')
[69]:
# plot neocortical results (from the last iteration above. That is - noveltydetection for the right hemisphere)
mc = np.ones([c69_inf_lh.n_points + c69_inf_rh.n_points])*np.nan
for h,hemi in enumerate(hemis):
for i in range(nP):
mc[parc==(i+1+(h*nP))] = z_score[iP[h]][i]
plot_hemispheres( c69_inf_lh, c69_inf_rh,array_name=np.hsplit(mc,1),
size=(800,200), color_bar=True, cmap='bwr', embed_nb=True,nan_color=(1, 1, 1, 1))
[69]:
[ ]:
# same as above, but for hippocampus
for h, hemi in enumerate(hemis):
for l,label in enumerate(labels):
cdata_hipp = nib.load(f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/MST2/sub-{sub}_ses-{ses}_hemi-{hemi}_space-T1w_den-2mm_label-hipp_MST2_smooth-1mm.func.gii').darrays[0].data
# fit the design matrix to the data
labels_, estimates = run_glm(cdata_hipp, design_matrix.values)
# run contrasts of interest
for index, (contrast_id, contrast_val) in enumerate(contrasts.items()):
# Compute contrast-related statistics
contrast = compute_contrast(labels_, estimates, contrast_val,
contrast_type='t')
# We present the Z-transform of the t map
z_score = contrast.z_score()
#create and save gifti images
for h,hemi in enumerate(hemis):
gii = nib.gifti.GiftiImage()
gii.add_gifti_data_array(nib.gifti.GiftiDataArray(data=z_score[iP[h]]))
nib.save(gii, f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{current_task}/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-{label}_task-{current_task}_contrast-{contrast_id}.shape.gii')
[ ]:
# plot hippocampal results (from the last iteration above. That is - noveltydetection for the right hemisphere)
hm.plotting.surfplot_canonical_foldunfold(z_score, den='2mm', hemis=['L'], labels=labels, tighten_cwindow=True, unfoldAPrescale=True, cmap='bwr', color_range='sym', share='row', color_bar='right', embed_nb=True)
Now that we’ve run through a full example for one subject, we’ll loop through all subjects and save the data:
[ ]:
#list all possible combination of correct answer(target) and subject response
conditions = ['oldold', 'similarsimilar', 'newnew', 'oldsimilar', 'oldnew', 'similarold', 'similarnew', 'newold', 'newsimilar']
current_task='MST2'
for sub in subs:
# load in regressors of no interest generated by micapipe
motion_reg = np.loadtxt(f'{micapipe_dir}/sub-{sub}/ses-{ses}/func/desc-se_task-MST2_acq-AP_bold/volumetric/sub-{sub}_ses-{ses}_space-func_desc-se.1D')
# Specify the timing of fmri frames
frame_times = TR * (np.arange(motion_reg.shape[0]) + slice_time_ref)
### create design matrix ###
# Load event files
events = pd.read_table(f'{micapipe_raw}/sub-{sub}/ses-{ses}/func/sub-{sub}_ses-{ses}_task-MST2_events.tsv')
df = events[['event_1_onset','event_1_duration','event_2_onset', 'event_2_duration','event_3_onset','response_time']]
# Recode events to have easy-to-read names
df.rename(columns={'event_1_onset': 'fixation', 'event_1_duration': 'fixation_dur','event_2_onset': 'onset', 'event_2_duration': 'duration','event_3_onset': 'keypress'}, inplace=True)
# Combine response and condition to get all possible combinations
true_con = events['trial_type'] + events["subject response"].astype('str')
df['trial_type'] = true_con
design_matrix = make_first_level_design_matrix(frame_times,
events=df,
hrf_model='spm + derivative + dispersion',
add_regs=motion_reg)
# in some cases, there are no trials of a certain type (eg. someone never pressed "new" to and "old" stimulus.
# in this case add extra columns to the design matrix with all 0s
# this will help us look at all trial types later
for condition in conditions:
if condition not in design_matrix.columns:
# Create columns for condition, its derivatives, and dispersion
design_matrix[condition] = 0
design_matrix[f'{condition}_derivative'] = 0
design_matrix[f'{condition}_dispersion'] = 0
### define contrasts of interest ###
contrast_matrix = np.eye(design_matrix.shape[1])
basic_contrasts = dict([(column, contrast_matrix[i])
for i, column in enumerate(design_matrix.columns)])
# now we define actual contrasts of interest for each trial type, without subtracting any other trial type (i.e. uncorrected)
contrasts = {
'patternseparation_uncorrected': (
basic_contrasts['similarsimilar']
+ basic_contrasts['similarsimilar_derivative']
+ basic_contrasts['similarsimilar_dispersion']),
'patterncompletion_uncorrected': (
basic_contrasts['oldsimilar']
+ basic_contrasts['oldsimilar_derivative']
+ basic_contrasts['oldsimilar_dispersion']),
'noveltydetection_uncorrected': (
basic_contrasts['newnew']
+ basic_contrasts['newnew_derivative']
+ basic_contrasts['newnew_dispersion']),
# now we will subtract trials where the subject "failed" the trial type of interest
'patternseparation': (
basic_contrasts['similarsimilar']
- basic_contrasts['similarnew']
+ basic_contrasts['similarsimilar_derivative']
- basic_contrasts['similarnew_derivative']
+ basic_contrasts['similarsimilar_dispersion']
- basic_contrasts['similarnew_dispersion']),
'patterncompletion': (
basic_contrasts['oldsimilar']
- basic_contrasts['oldnew']
+ basic_contrasts['oldsimilar_derivative']
- basic_contrasts['oldnew_derivative']
+ basic_contrasts['oldsimilar_dispersion']
- basic_contrasts['oldnew_dispersion']),
'noveltydetection': (
basic_contrasts['newnew']
- 0.5*basic_contrasts['oldsimilar']
- 0.5*basic_contrasts['oldnew']
+ basic_contrasts['newnew_derivative']
- 0.5*basic_contrasts['oldsimilar_derivative']
- 0.5*basic_contrasts['oldnew_derivative']
+ basic_contrasts['newnew_dispersion']
- 0.5*basic_contrasts['oldsimilar_dispersion']
- 0.5*basic_contrasts['oldnew_dispersion'])}
### fit the data ###
# Load the neocortical timeseries and parcellate to schaefer 400 space
fmri_img_neo = nib.load(f'{micapipe_dir}/sub-{sub}/ses-{ses}/func/desc-se_task-MST2_acq-AP_bold/surf/sub-{sub}_ses-{ses}_surf-fsLR-32k_desc-timeseries_clean.shape.gii').darrays[0].data
neo_ts_parc = np.ones((fmri_img_neo.shape[0], nP*2))
for i in range(nP*2):
neo_ts_parc[:, i] = np.nanmean(fmri_img_neo[:, parc == (i + 1)], axis=1)
labels_, estimates = run_glm(neo_ts_parc, design_matrix.values)
# run contrasts of interest
for index, (contrast_id, contrast_val) in enumerate(contrasts.items()):
# Compute contrast-related statistics
contrast = compute_contrast(labels_, estimates, contrast_val,
contrast_type='t')
# We present the Z-transform of the t map
z_score = contrast.z_score()
#create and save gifti images
for h,hemi in enumerate(hemis):
gii = nib.gifti.GiftiImage()
gii.add_gifti_data_array(nib.gifti.GiftiDataArray(data=z_score[iP[h]]))
nib.save(gii, f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{current_task}/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-schaefer-400_task-{current_task}_contrast-{contrast_id}.shape.gii')
# same as above, but for hippocampus
for h, hemi in enumerate(hemis):
for l,label in enumerate(labels):
cdata_hipp = nib.load(f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/MST2/sub-{sub}_ses-{ses}_hemi-{hemi}_space-T1w_den-2mm_label-hipp_MST2_smooth-1mm.func.gii').darrays[0].data
# fit the design matrix to the data
labels_, estimates = run_glm(cdata_hipp, design_matrix.values)
# run contrasts of interest
for index, (contrast_id, contrast_val) in enumerate(contrasts.items()):
# Compute contrast-related statistics
contrast = compute_contrast(labels_, estimates, contrast_val,
contrast_type='t')
# We present the Z-transform of the t map
z_score = contrast.z_score()
#create and save gifti images
for h,hemi in enumerate(hemis):
gii = nib.gifti.GiftiImage()
gii.add_gifti_data_array(nib.gifti.GiftiDataArray(data=z_score[iP[h]]))
nib.save(gii, f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{current_task}/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-{label}_task-{current_task}_contrast-{contrast_id}.shape.gii')
1.2) Group-averaging and significance/consistency testing
[7]:

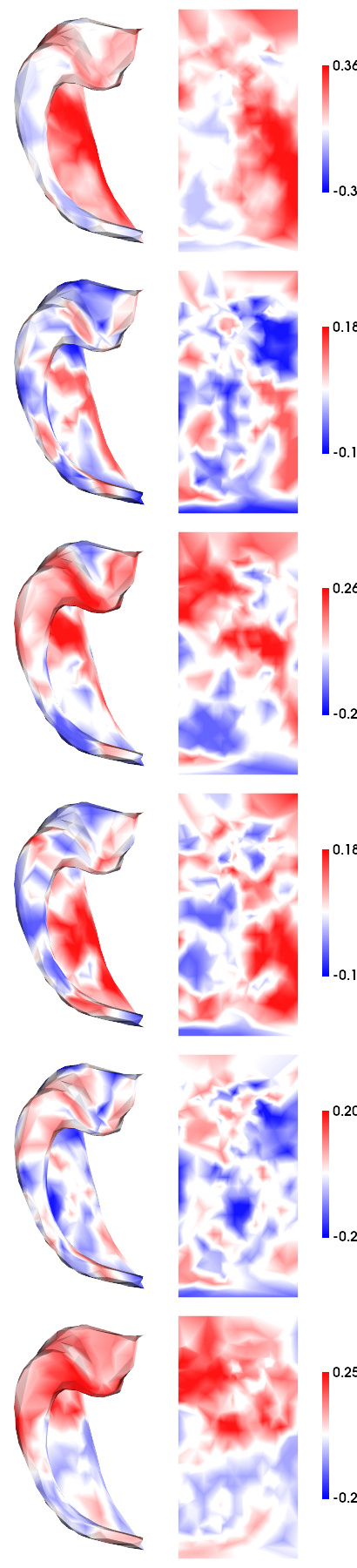

#compute average across subjects for each contrasts and plot hippocampal findings
contrastnames_patternsep2=list(contrasts.keys())
contrasts_patternsep2 = np.ones((nV, len(hemis), len(subs), len(contrastnames_patternsep2))) * np.nan
for s, sub in enumerate(subs):
for h, hemi in enumerate(hemis):
for l, label in enumerate(labels):
for c, contrast_name in enumerate(contrastnames_patternsep2):
contrast_file = f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/MST2/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-{label}_task-MST2_contrast-{contrast_name}.shape.gii'
contrasts_patternsep2[iV[l], h, s, c] = nib.load(contrast_file).darrays[0].data
[11]:
hm.plotting.surfplot_canonical_foldunfold(np.nanmean(contrasts_patternsep2,axis=(1,2)), den='2mm', hemis=['L'], labels=labels, tighten_cwindow=True, unfoldAPrescale=True, cmap='bwr', color_range='sym', share='row', color_bar='right', embed_nb=True)
[11]:
significance testing

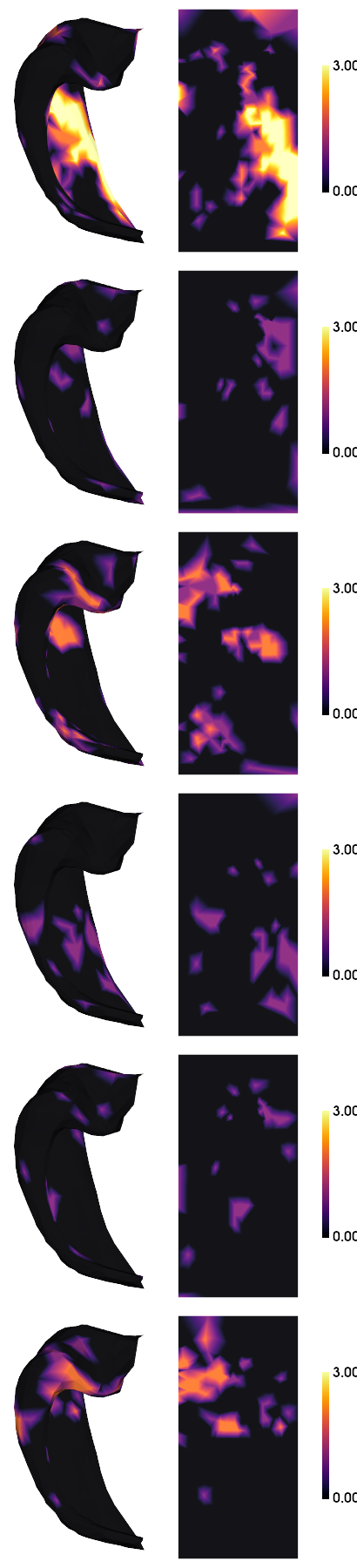

We won’t go into detail here, but this gives a basic idea of (uncorrected) significance values. Ideally, some cluster correction should be applied
[78]:
t = ttest_1samp(contrasts_patternsep2.reshape(nV,2*len(subs),len(contrastnames_patternsep2)),0,axis=1)
tmap = np.zeros(t[1].shape)
tmap[t[1]<(0.05)] = 1
tmap[t[1]<(0.01)] = 2
tmap[t[1]<(0.001)] = 3
hm.plotting.surfplot_canonical_foldunfold(tmap, den='2mm', labels=labels, hemis=['L'], tighten_cwindow=True, unfoldAPrescale=True, cmap='inferno', share='row', color_range=(0,3), color_bar='right', embed_nb=True)
[78]:
Additional consistency checks
Rather than significance, we can also check consistency between subject results
[10]:
mfcorr = []
sdfcorr = []
corr = np.zeros((len(subs),len(subs),2,len(contrastnames_patternsep2)))
fig, ax = plt.subplots(nrows=1, ncols=len(contrastnames_patternsep2), figsize=(3*len(contrastnames_patternsep2),3))
for h,hemi in enumerate(hemis):
for f,feature in enumerate(contrastnames_patternsep2):
cdat = contrasts_patternsep2[:,h,:,f].reshape((nV,-1))
corr[:,:,h,f] = np.corrcoef(cdat.T)
fcorr = corr[:,:,h,f][np.triu_indices(len(subs),k=1)]
print(ttest_1samp(fcorr,0,nan_policy='omit'))
ax[f].hist(fcorr)
mfcorr.append(np.nanmean(fcorr))
sdfcorr.append(np.nanstd(fcorr))
Ttest_1sampResult(statistic=8.131151229499595, pvalue=6.04322441312994e-16)
Ttest_1sampResult(statistic=1.363577810547197, pvalue=0.17281415626285596)
Ttest_1sampResult(statistic=7.303670529693287, pvalue=3.4889664571640743e-13)
Ttest_1sampResult(statistic=1.8870055398040273, pvalue=0.0592467512150204)
Ttest_1sampResult(statistic=0.5960190493982473, pvalue=0.5512041478778777)
Ttest_1sampResult(statistic=3.080369254500647, pvalue=0.0020843689241653303)
Ttest_1sampResult(statistic=6.742503182407484, pvalue=1.8436025081978335e-11)
Ttest_1sampResult(statistic=1.3213936432198694, pvalue=0.18648210464996004)
Ttest_1sampResult(statistic=4.4834925789488596, pvalue=7.5915312669352554e-06)
Ttest_1sampResult(statistic=1.2144603328144792, pvalue=0.22465836124383068)
Ttest_1sampResult(statistic=0.000554492664403062, pvalue=0.9995576130333254)
Ttest_1sampResult(statistic=2.880721728081016, pvalue=0.003993087634010751)
[11]:

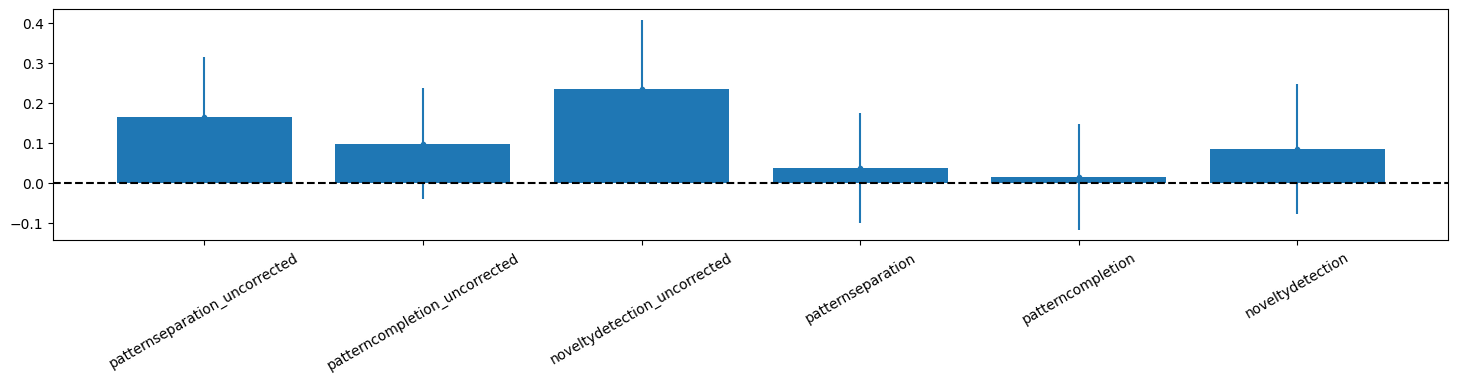

xnames = contrastnames_patternsep2 + contrastnames_patternsep2
fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(3*len(xnames),3))
plt.bar(range(len(xnames)),mfcorr)
plt.errorbar(range(len(xnames)),mfcorr, yerr=sdfcorr, fmt=".")
plt.xticks(ticks=range(len(xnames)),labels=xnames,rotation=30);
plt.axhline(y=0, color='k', linestyle='--')
plt.gca().set_ylim(bottom=0)
[11]:
(0.0, 0.13444175706973693)
[ ]:
#save the average maps
for h,hemi in enumerate(hemis):
for l,label in enumerate(labels):
for cname in contrastnames_patternsep2:
contrast_idx = cname.index(cname)
cdat = np.nanmean(contrasts_patternsep2[iV[l],h,:,contrast_idx],axis=1).flatten()
data_array = nib.gifti.GiftiDataArray(data=cdat)
image = nib.gifti.GiftiImage()
image.add_gifti_data_array(data_array)
nib.save(image, f'../maps/HippoMaps-initializationMaps/Dataset-MICs/MRI-3T-MST2_average-{len(subs)}_hemi-{hemi}_den-2mm_label-{label}_contrast-{cname}.shape.gii')
1.3) Consider neocortical results
All the same as above, but with neocortical surfaces (and stacking left+right hemispheres)
[97]:
contrasts_patternsep2_neo = np.ones((nP, len(hemis), len(subs), len(contrastnames_patternsep2))) * np.nan
for s, sub in enumerate(subs):
for h, hemi in enumerate(hemis):
for c, contrast_name in enumerate(contrastnames_patternsep2):
contrast_file = f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/MST2/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-schaefer-400_task-MST2_contrast-{contrast_name}.shape.gii'
contrasts_patternsep2_neo[:,h, s, c] = nib.load(contrast_file).darrays[0].data
[116]:
mc = np.ones([c69_inf_lh.n_points + c69_inf_rh.n_points, len(contrastnames_patternsep2)])*np.nan
for h,hemi in enumerate(hemis):
for i in range(nP):
for c, contrast_name in enumerate(contrastnames_patternsep2):
mc[parc==(i+1+(h*nP)),c] = np.nanmean(contrasts_patternsep2_neo,axis=2)[i,h,c]
plot_hemispheres(c69_inf_lh, c69_inf_rh,array_name=np.hsplit(mc,len(contrastnames_patternsep2)),
size=(800,200*len(contrastnames_patternsep2)), color_bar=True, cmap='bwr', embed_nb=True,nan_color=(1, 1, 1, 1))
[116]:
[117]:
mfcorr = []
sdfcorr = []
corr = np.zeros((len(subs)*2,len(subs)*2,len(contrastnames_patternsep2)))
fig, ax = plt.subplots(nrows=1, ncols=len(contrastnames_patternsep2), figsize=(3*len(contrastnames_patternsep2),3))
for f,feature in enumerate(contrastnames_patternsep2):
cdat = contrasts_patternsep2_neo[:,:,:,f].reshape((nP,-1))
corr[:,:,f] = np.corrcoef(cdat.T)
fcorr = corr[:,:,f][np.triu_indices(len(subs)*2,k=1)]
print(ttest_1samp(fcorr,0,nan_policy='omit'))
ax[f].hist(fcorr)
mfcorr.append(np.nanmean(fcorr))
sdfcorr.append(np.nanstd(fcorr))
Ttest_1sampResult(statistic=125.44587709572133, pvalue=0.0)
Ttest_1sampResult(statistic=74.74538598254394, pvalue=0.0)
Ttest_1sampResult(statistic=159.3452219200208, pvalue=0.0)
Ttest_1sampResult(statistic=31.226919970854308, pvalue=1.1110902175829445e-206)
Ttest_1sampResult(statistic=13.57098750722382, pvalue=1.1414292911457831e-41)
Ttest_1sampResult(statistic=61.59369873800046, pvalue=0.0)
[118]:

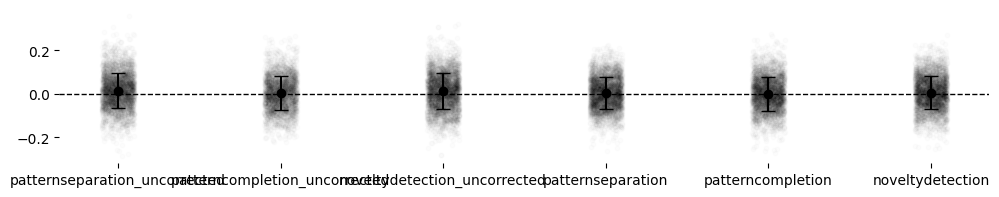

xnames = contrastnames_patternsep2
fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(3*len(contrastnames_patternsep2),3))
plt.bar(range(len(contrastnames_patternsep2)),mfcorr)
plt.errorbar(range(len(contrastnames_patternsep2)),mfcorr, yerr=sdfcorr, fmt=".")
plt.xticks(ticks=range(len(contrastnames_patternsep2)),labels=xnames,rotation=30);
plt.axhline(y=0, color='k', linestyle='--')
#plt.ylim([0,.9]);
[118]:
<matplotlib.lines.Line2D at 0x7f2e1fd43a30>
1.4) Compare to previously mapped features
In HippoMaps, we present a high-order space of all features correlated with a continuous anterior-posterior axis by a discrete proximal-distal subfields. Here, we reload that space to find where the present maps fall, and which other mapped features they are most similar to
[9]:
# here we look only at the pattern separation and novelty conditions
feats_to_examine = [0,2]
cdata = np.nanmean(contrasts_patternsep2,axis=(1,2))[:,feats_to_examine]
topFeatures, topR, topP, APcorr, Subfscorr, ax = hm.stats.contextualize2D(cdata, nperm=1000) # ideally nperm should be 10000
print(topFeatures)
print(topR)
print(topP)
/export03/data/opt/venv/lib/python3.8/site-packages/scipy/stats/_stats_py.py:4878: ConstantInputWarning: An input array is constant; the correlation coefficient is not defined.
warnings.warn(stats.ConstantInputWarning(warn_msg))
[['histology-thickness' 'MRI-3T-rsfMRI-avgFCneocort'
'histology-curvature']
['iEEG-BandPower-beta' 'iEEG-BandPower-gamma' 'iEEG-BandPower-theta']]
[[ 0.65634844 0.60399173 -0.56773163]
[-0.6378841 -0.5906666 0.54140302]]
[[0. 0. 0. ]
[0. 0. 0.007]]
2) Episodic Retrieval
2.1) GLM fit
This section is very similar to the above, but with different input data, conditions, and contrasts. We also don’t walk through one subject, but rather run all subjects together
[93]:
conditions = ['remembered', 'forgotten']
current_task='retrieval'
for sub in subs:
# Specify the timing of fmri frames from one example
motion_reg=np.loadtxt(f'{micapipe_dir}/sub-{sub}/ses-{ses}/func/desc-se_task-retrieval_acq-AP_bold/volumetric/sub-{sub}_ses-{ses}_space-func_desc-se.1D')
frame_times = TR * (np.arange(motion_reg.shape[0]) + slice_time_ref)
### create design matrix ###
# Load event files
events_file = f'{micapipe_raw}/sub-{sub}/ses-{ses}/func/sub-{sub}_ses-{ses}_task-retrieval_events.tsv'
events = pd.read_table(events_file)
df = events[['event_1_onset','event_1_duration','event_2_onset', 'event_2_duration','event_3_onset','response_time','subject_response','prime','target']]
# Recode events to have easy-to-read names
df.rename(columns={'event_1_onset': 'fixation', 'event_1_duration': 'fixation_dur','event_2_onset': 'onset', 'event_2_duration': 'duration','event_3_onset': 'keypress'}, inplace=True)
df['trial_type']=None
df['trial_type'] = df.apply(lambda row: 'remembered' if row['target'] == row['subject_response'] else 'forgotten', axis=1)
design_matrix = make_first_level_design_matrix(frame_times,
events=df,
hrf_model='spm + derivative + dispersion',
add_regs=motion_reg
)
# in case of some trial types missing, add extras with all 0sL
for condition in conditions:
if condition not in design_matrix.columns:
# Create columns for condition, its derivatives, and dispersion
design_matrix[condition] = 0
design_matrix[f'{condition}_derivative'] = 0
design_matrix[f'{condition}_dispersion'] = 0
### define contrasts of interest ###
contrast_matrix = np.eye(design_matrix.shape[1])
basic_contrasts = dict([(column, contrast_matrix[i])
for i, column in enumerate(design_matrix.columns)])
contrasts = {
'retrieval_uncorrected': (
basic_contrasts['remembered']
+ basic_contrasts['remembered_derivative']
+ basic_contrasts['remembered_dispersion']),
'retrieval_corrected': (
basic_contrasts['remembered']
- basic_contrasts['forgotten']
+ basic_contrasts['remembered_derivative']
- basic_contrasts['forgotten_derivative']
+ basic_contrasts['remembered_dispersion']
+ basic_contrasts['forgotten_dispersion'])}
### fit the data ###
# Load the neocortical timeseries and parcellate to schaefer 400 space
fmri_img_neo = nib.load(f'{micapipe_dir}/sub-{sub}/ses-{ses}/func/desc-se_task-MST2_acq-AP_bold/surf/sub-{sub}_ses-{ses}_surf-fsLR-32k_desc-timeseries_clean.shape.gii').darrays[0].data
neo_ts_parc = np.ones((fmri_img_neo.shape[0], nP*2))
for i in range(nP*2):
neo_ts_parc[:, i] = np.nanmean(fmri_img_neo[:, parc == (i + 1)], axis=1)
labels_, estimates = run_glm(neo_ts_parc, design_matrix.values)
# run contrasts of interest
for index, (contrast_id, contrast_val) in enumerate(contrasts.items()):
# Compute contrast-related statistics
contrast = compute_contrast(labels_, estimates, contrast_val,
contrast_type='t')
# We present the Z-transform of the t map
z_score = contrast.z_score()
#create and save gifti images
for h,hemi in enumerate(hemis):
gii = nib.gifti.GiftiImage()
gii.add_gifti_data_array(nib.gifti.GiftiDataArray(data=z_score[iP[h]]))
nib.save(gii, f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{current_task}/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-schaefer-400_task-{current_task}_contrast-{contrast_id}.shape.gii')
# same as above, but for hippocampus
for h, hemi in enumerate(hemis):
for l,label in enumerate(labels):
cdata_hipp = nib.load(f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/MST2/sub-{sub}_ses-{ses}_hemi-{hemi}_space-T1w_den-2mm_label-hipp_MST2_smooth-1mm.func.gii').darrays[0].data
# fit the design matrix to the data
labels_, estimates = run_glm(cdata_hipp, design_matrix.values)
# run contrasts of interest
for index, (contrast_id, contrast_val) in enumerate(contrasts.items()):
# Compute contrast-related statistics
contrast = compute_contrast(labels_, estimates, contrast_val,
contrast_type='t')
# We present the Z-transform of the t map
z_score = contrast.z_score()
#create and save gifti images
for h,hemi in enumerate(hemis):
gii = nib.gifti.GiftiImage()
gii.add_gifti_data_array(nib.gifti.GiftiDataArray(data=z_score[iP[h]]))
nib.save(gii, f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{current_task}/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-{label}_task-{current_task}_contrast-{contrast_id}.shape.gii')
[94]:
# plot design matrix of the last subject
plt.figure(figsize=(12, 6))
plt.imshow(design_matrix.values, aspect='auto', cmap='seismic', vmin=-1, vmax=1)
plt.title(f'Design Matrix for Subject {sub}')
plt.xticks(range(len(design_matrix.columns)), design_matrix.columns, rotation=90)
plt.xlabel('Regressors')
plt.ylabel('Time Points')
plt.colorbar(label='Regressor Values')
plt.show()
2.2) Group-averaging and significance/consistency testing
[96]:
#compute average across subjects for each contrasts and plot hippocampal findings
contrastnames_epiretrieve=list(contrasts.keys())
contrasts_retrieval = np.ones((nV, 2, len(subs), len(contrastnames_epiretrieve))) * np.nan
for s, sub in enumerate(subs):
for h, hemi in enumerate(hemis):
for l, label in enumerate(labels):
for c, contrast_name in enumerate(contrastnames_epiretrieve):
contrast_file = f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/retrieval/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-{label}_task-retrieval_contrast-{contrast_name}.shape.gii'
contrasts_retrieval[ind[l], h, s, c] = nib.load(contrast_file).darrays[0].data
[247]:
hm.plotting.surfplot_canonical_foldunfold(np.nanmean(contrasts_retrieval,axis=(1,2)), den='2mm', hemis=['L'], labels=labels, tighten_cwindow=True, cmap='bwr', color_range='sym', unfoldAPrescale=True, share='row', color_bar='right', embed_nb=True)
[247]:
[256]:
from scipy.stats import ttest_1samp
t = ttest_1samp(contrasts_retrieval.reshape((nV,2*len(subs),len(contrastnames_epiretrieve))),0,axis=1)
tmap = np.zeros(t[1].shape)
tmap[t[1]<(0.05)] = 1
tmap[t[1]<(0.01)] = 2
tmap[t[1]<(0.001)] = 3
hm.plotting.surfplot_canonical_foldunfold(tmap, den='2mm', labels=labels, hemis=['L'], tighten_cwindow=True, unfoldAPrescale=True, cmap='inferno', share='row', color_range=(0,3), color_bar='right', embed_nb=True)
[256]:
[ ]:
#save the average maps
# Select the corrected contrasts only
selected_contrastnames = contrastnames_epiretrieve[-1:]
for h,hemi in enumerate(hemis):
for l,label in enumerate(labels):
for contrastname_epiretrieve in selected_contrastnames:
contrast_idx = contrastnames_epiretrieve.index(contrastname_epiretrieve)
cdat = np.nanmean(contrasts_retrieval[ind[l],h,:,contrast_idx],axis=1).flatten()
data_array = nib.gifti.GiftiDataArray(data=cdat)
image = nib.gifti.GiftiImage()
image.add_gifti_data_array(data_array)
nib.save(image, f'../maps/HippoMaps-initializationMaps/Dataset-MICs/MRI-3T-epiretrieve_average-{len(subs)}_hemi-{hemi}_den-2mm_label-{label}_contrast-{contrastname_epiretrieve}.shape.gii')
[139]:
mfcorr = []
sdfcorr = []
corr = np.zeros((len(subs),len(subs),2,len(contrastnames_epiretrieve)))
fig, ax = plt.subplots(nrows=1, ncols=len(contrastnames_epiretrieve), figsize=(3*len(contrastnames_epiretrieve),3))
for h,hemi in enumerate(hemis):
for f,feature in enumerate(contrastnames_epiretrieve):
cdat = contrasts_retrieval[:,h,:,f].reshape((nV,-1))
corr[:,:,h,f] = np.corrcoef(cdat.T)
fcorr = corr[:,:,h,f][np.triu_indices(len(subs),k=1)]
print(ttest_1samp(fcorr,0,nan_policy='omit'))
ax[f].hist(fcorr)
mfcorr.append(np.nanmean(fcorr))
sdfcorr.append(np.nanstd(fcorr))
[140]:
xnames = contrastnames_epiretrieve + contrastnames_epiretrieve
fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(3*len(xnames),3))
plt.bar(range(len(xnames)),mfcorr)
plt.errorbar(range(len(xnames)),mfcorr, yerr=sdfcorr, fmt=".")
plt.xticks(ticks=range(len(xnames)),labels=xnames,rotation=30);
plt.axhline(y=0, color='k', linestyle='--')
#plt.ylim([0,.9]);
[140]:
<matplotlib.lines.Line2D at 0x7f0dcd3b1af0>
2.3) Consider the neocortex
[39]:
#compute average across subjects for each contrasts and plot neocortical findings
contrasts_retrieval_neo = np.ones((nP, len(hemis), len(subs), len(contrastnames_epiretrieve))) * np.nan
for s, sub in enumerate(subs):
for h, hemi in enumerate(hemis):
for c, contrast_name in enumerate(contrastnames_epiretrieve):
contrast_file = f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/retrieval/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-schaefer-400_task-retrieval_contrast-{contrast_name}.shape.gii'
contrasts_retrieval_neo[:,h, s, c] = nib.load(contrast_file).darrays[0].data
[226]:
mc = np.ones([c69_inf_lh.n_points + c69_inf_rh.n_points, len(contrastnames_epiretrieve)])*np.nan
for h,hemi in enumerate(hemis):
for i in range(nP):
for c, contrast_name in enumerate(contrastnames_epiretrieve):
mc[parc==(i+1+(h*nP))] = np.nanmean(contrasts_retrieval_neo,axis=2)[i,h,c]
plot_hemispheres( c69_inf_lh, c69_inf_rh,array_name=np.hsplit(mc,len(contrastnames_epiretrieve)),
size=(800,200*len(contrastnames_epiretrieve)), color_bar=True, cmap='bwr', embed_nb=True,nan_color=(1, 1, 1, 1))
[226]:
[101]:
mfcorr = []
sdfcorr = []
corr = np.zeros((len(subs)*2,len(subs)*2,len(contrastnames_epiretrieve)))
fig, ax = plt.subplots(nrows=1, ncols=len(contrastnames_epiretrieve), figsize=(3*len(contrastnames_epiretrieve),3))
for f,feature in enumerate(contrastnames_epiretrieve):
cdat = contrasts_retrieval_neo[:,:,:,f].reshape((nP,-1))
corr[:,:,f] = np.corrcoef(cdat.T)
fcorr = corr[:,:,f][np.triu_indices(len(subs)*2,k=1)]
ax[f].hist(fcorr)
mfcorr.append(np.nanmean(fcorr))
sdfcorr.append(np.nanstd(fcorr))
[102]:
xnames = contrastnames_epiretrieve
fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(3*len(contrastnames_epiretrieve),3))
plt.bar(range(len(contrastnames_epiretrieve)),mfcorr)
plt.errorbar(range(len(contrastnames_epiretrieve)),mfcorr, yerr=sdfcorr, fmt=".")
plt.xticks(ticks=range(len(contrastnames_epiretrieve)),labels=xnames,rotation=30);
plt.axhline(y=0, color='k', linestyle='--')
#plt.ylim([0,.9]);
[102]:
<matplotlib.lines.Line2D at 0x7f0dcb802490>
3) Episodic encoding -subsequent memory
3.1) GLM fit
Again, this section is very similar to the above, but with different input data, conditions, and contrasts. We also don’t walk through one subject, but rather run all subjects together
[104]:
conditions = ['correct', 'incorrect']
current_task='encoding'
for sub in subs[-1:]:
# Specify the timing of fmri frames from one example
motion_reg=np.loadtxt(f'{micapipe_dir}/sub-{sub}/ses-{ses}/func/desc-se_task-encoding_acq-AP_bold/volumetric/sub-{sub}_ses-{ses}_space-func_desc-se.1D')
frame_times = TR * (np.arange(motion_reg.shape[0]) + slice_time_ref)
### create design matrix ###
# This is slightly more complicated now since we need to look up which stimuli were actually subsequently remmebered by matching their IDs
# Load encoding file
encoding_file = f'{micapipe_raw}/sub-{sub}/ses-{ses}/func/sub-{sub}_ses-{ses}_task-encoding_events.tsv'
df_encode = pd.read_table(encoding_file)
df_encode= df_encode[['event_1_onset','event_1_duration','event_2_onset', 'stim_duration','stim_1','stim_2']]
# Recode events to have easy-to-read names
df_encode.rename(columns={'event_1_onset': 'fixation', 'event_1_duration': 'fixation_dur','event_2_onset': 'onset', 'stim_duration': 'duration'}, inplace=True)
# Load retrieval file
retrieval_file = f'{micapipe_raw}/sub-{sub}/ses-{ses}/func/sub-{sub}_ses-{ses}_task-retrieval_events.tsv'
df_retrieve = pd.read_table(retrieval_file)
df_retrieve=df_retrieve[['event_1_onset', 'event_1_duration', 'event_2_onset', 'event_2_duration', 'prime', 'target', 'event_3_onset','subject_response']]
# Recode events to have easy-to-read names
df_retrieve.rename(columns={'event_1_onset': 'fixation', 'event_1_duration': 'fixation_dur', 'event_2_onset': 'onset', 'event_2_duration': 'duration', 'event_3_onset': 'keypress'}, inplace=True)
df_retrieve['trial_type']=None
df_retrieve['trial_type'] = df_retrieve.apply(lambda row: 'correct' if row['target'] == row['subject_response'] else 'incorrect', axis=1)
new_df = pd.DataFrame(columns=['onset','duration','prime','target','trial_type'])
# Dictionary to keep track of matched rows in df_retrieve
matched_rows_dict = {}
# Iterate through rows in encoding data
i=0
for index, row_encode in df_encode.iterrows():
stim_1 = row_encode['stim_1']
stim_2 = row_encode['stim_2']
# Check if this pair has already been matched
if (stim_1, stim_2) not in matched_rows_dict:
# Match rows in retrieval data based on stim_1 and stim_2
match_rows = df_retrieve[(df_retrieve['prime'] == stim_1) & (df_retrieve['target'] == stim_2)]
# If there is exactly one match, append the data to the design matrix
if len(match_rows) == 1:
matched_row = match_rows.iloc[0]
new_df.loc[i] = [row_encode['onset'],
row_encode['duration'],
matched_row['prime'],
matched_row['target'],
matched_row['trial_type']]
i+=1
# Update the matched_rows_dict to mark this pair as matched
matched_rows_dict[(stim_1, stim_2)] = True
else:
# If there is no match or multiple matches, mark this pair as unmatched
matched_rows_dict[(stim_1, stim_2)] = False
design_matrix = make_first_level_design_matrix(frame_times,
events=new_df,
hrf_model='spm + derivative + dispersion',
add_regs=motion_reg)
for condition in conditions:
if condition not in design_matrix.columns:
design_matrix[condition] = 0
design_matrix[f'{condition}_derivative'] = 0
design_matrix[f'{condition}_dispersion'] = 0
### define contrasts of interest ###
contrast_matrix = np.eye(design_matrix.shape[1])
basic_contrasts = dict([(column, contrast_matrix[i])
for i, column in enumerate(design_matrix.columns)])
contrasts = {
'subsequent_memory_uncorrected': (
basic_contrasts['correct']
+ basic_contrasts['correct_derivative']
+ basic_contrasts['correct_dispersion']),
'subsequent_memory_corrected': (
basic_contrasts['correct']
- basic_contrasts['incorrect']
+ basic_contrasts['correct_derivative']
- basic_contrasts['incorrect_derivative']
+ basic_contrasts['correct_dispersion']
- basic_contrasts['incorrect_dispersion'])}
### fit the data ###
# Load the neocortical timeseries and parcellate to schaefer 400 space
fmri_img_neo = nib.load(f'{micapipe_dir}/sub-{sub}/ses-{ses}/func/desc-se_task-MST2_acq-AP_bold/surf/sub-{sub}_ses-{ses}_surf-fsLR-32k_desc-timeseries_clean.shape.gii').darrays[0].data
neo_ts_parc = np.ones((fmri_img_neo.shape[0], nP*2))
for i in range(nP*2):
neo_ts_parc[:, i] = np.nanmean(fmri_img_neo[:, parc == (i + 1)], axis=1)
labels_, estimates = run_glm(neo_ts_parc, design_matrix.values)
# run contrasts of interest
for index, (contrast_id, contrast_val) in enumerate(contrasts.items()):
# Compute contrast-related statistics
contrast = compute_contrast(labels_, estimates, contrast_val,
contrast_type='t')
# We present the Z-transform of the t map
z_score = contrast.z_score()
#create and save gifti images
for h,hemi in enumerate(hemis):
gii = nib.gifti.GiftiImage()
gii.add_gifti_data_array(nib.gifti.GiftiDataArray(data=z_score[iP[h]]))
nib.save(gii, f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{current_task}/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-schaefer-400_task-{current_task}_contrast-{contrast_id}.shape.gii')
# same as above, but for hippocampus
for h, hemi in enumerate(hemis):
for l,label in enumerate(labels):
cdata_hipp = nib.load(f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/MST2/sub-{sub}_ses-{ses}_hemi-{hemi}_space-T1w_den-2mm_label-hipp_MST2_smooth-1mm.func.gii').darrays[0].data
# fit the design matrix to the data
labels_, estimates = run_glm(cdata_hipp, design_matrix.values)
# run contrasts of interest
for index, (contrast_id, contrast_val) in enumerate(contrasts.items()):
# Compute contrast-related statistics
contrast = compute_contrast(labels_, estimates, contrast_val,
contrast_type='t')
# We present the Z-transform of the t map
z_score = contrast.z_score()
#create and save gifti images
for h,hemi in enumerate(hemis):
gii = nib.gifti.GiftiImage()
gii.add_gifti_data_array(nib.gifti.GiftiDataArray(data=z_score[iP[h]]))
nib.save(gii, f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/{current_task}/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-{label}_task-{current_task}_contrast-{contrast_id}.shape.gii')
[105]:
# plot design matrix of the last subject
plt.figure(figsize=(12, 6))
plt.imshow(design_matrix.values, aspect='auto', cmap='seismic', vmin=-1, vmax=1)
plt.title(f'Design Matrix for Subject {sub}')
plt.xticks(range(len(design_matrix.columns)), design_matrix.columns, rotation=90)
plt.xlabel('Regressors')
plt.ylabel('Time Points')
plt.colorbar(label='Regressor Values')
plt.show()
3.2) Group-averaging and significance/consistency testing
[107]:
#compute average across subjects for each contrasts and plot hippocampal findings
contrastnames_epiencode=list(contrasts.keys())
contrasts_epiencode = np.ones((nV, 2, len(subs), len(contrastnames_epiencode))) * np.nan
for s, sub in enumerate(subs):
for h, hemi in enumerate(hemis):
for l, label in enumerate(labels):
for c, contrastname_epiencode in enumerate(contrastnames_epiencode):
contrast_file = f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/encoding/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-{label}_task-encoding_contrast-{contrastname_epiencode}.shape.gii'
contrasts_epiencode[ind[l], h, s, c] = nib.load(contrast_file).darrays[0].data
[249]:
hm.plotting.surfplot_canonical_foldunfold(np.nanmean(contrasts_epiencode,axis=(1,2)), den='2mm', hemis=['L'], labels=labels, tighten_cwindow=True, cmap='bwr', color_range='sym', unfoldAPrescale=True, share='row', color_bar='right', embed_nb=True)
[249]:
[257]:
from scipy.stats import ttest_1samp
t = ttest_1samp(contrasts_epiencode.reshape((nV,2*len(subs),len(contrastnames_epiencode))),0,axis=1)
tmap = np.zeros(t[1].shape)
tmap[t[1]<(0.05)] = 1
tmap[t[1]<(0.01)] = 2
tmap[t[1]<(0.001)] = 3
hm.plotting.surfplot_canonical_foldunfold(tmap, den='2mm', labels=labels, hemis=['L'], tighten_cwindow=True, unfoldAPrescale=True, cmap='inferno', share='row', color_range=(0,3), color_bar='right', embed_nb=True)
[257]:
[111]:
#save the average maps
# Select the corrected contrasts only
selected_contrastnames = contrastnames_epiencode[-1:]
for h,hemi in enumerate(hemis):
for l,label in enumerate(labels):
for contrastname_epiencode in selected_contrastnames:
contrast_idx = contrastnames_epiencode.index(contrastname_epiencode)
cdat = np.nanmean(contrasts_epiencode[ind[l],h,:,contrast_idx],axis=1).flatten()
data_array = nib.gifti.GiftiDataArray(data=cdat)
image = nib.gifti.GiftiImage()
image.add_gifti_data_array(data_array)
nib.save(image, f'../maps/HippoMaps-initializationMaps/Dataset-MICs/MRI-3T-epiencode_average-{len(subs)}-{hemi}_den-2mm_label-{label}_contrast-{contrastname_epiencode}.shape.gii')
[142]:
mfcorr = []
sdfcorr = []
corr = np.zeros((len(subs),len(subs),2,len(contrastnames_epiencode)))
fig, ax = plt.subplots(nrows=1, ncols=len(contrastnames_epiencode), figsize=(3*len(contrastnames_epiencode),3))
for h,hemi in enumerate(hemis):
for f,feature in enumerate(contrastnames_epiencode):
cdat = contrasts_epiencode[:,h,:,f].reshape((nV,-1))
corr[:,:,h,f] = np.corrcoef(cdat.T)
fcorr = corr[:,:,h,f][np.triu_indices(len(subs),k=1)]
ax[f].hist(fcorr)
mfcorr.append(np.nanmean(fcorr))
sdfcorr.append(np.nanstd(fcorr))
[143]:
xnames = contrastnames_epiencode + contrastnames_epiencode
fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(3*len(xnames),3))
plt.bar(range(len(xnames)),mfcorr)
plt.errorbar(range(len(xnames)),mfcorr, yerr=sdfcorr, fmt=".")
plt.xticks(ticks=range(len(xnames)),labels=xnames,rotation=30);
plt.axhline(y=0, color='k', linestyle='--')
#plt.ylim([0,.9]);
[143]:
<matplotlib.lines.Line2D at 0x7f0dcac1d400>
3.3) Consider the neocortex
[114]:
#compute average across subjects for each contrasts and plot neocortical findings
contrasts_epiencode_neo = np.ones((nP, len(hemis), len(subs), len(contrastnames_epiencode))) * np.nan
for s, sub in enumerate(subs):
for h, hemi in enumerate(hemis):
for c, contrast_name in enumerate(contrastnames_epiencode):
contrast_file = f'{hippunfold_dir}/sub-{sub}/ses-{ses}/surf/task-fMRI/encoding/sub-{sub}_hemi-{hemi}_space-T1w_den-2mm_label-schaefer-400_task-encoding_contrast-{contrast_name}.shape.gii'
contrasts_epiencode_neo[:,h, s, c] = nib.load(contrast_file).darrays[0].data
[228]:
mc = np.ones([c69_inf_lh.n_points + c69_inf_rh.n_points, len(contrastnames_epiencode)])*np.nan
for h,hemi in enumerate(hemis):
for i in range(nP):
for c, contrast_name in enumerate(contrastnames_epiencode):
mc[parc==(i+1+(h*nP))] = np.nanmean(contrasts_epiencode_neo,axis=2)[i,h,c]
plot_hemispheres( c69_inf_lh, c69_inf_rh,array_name=np.hsplit(mc,len(contrastnames_epiencode)),
size=(800,200*len(contrastnames_epiencode)), color_bar=True, cmap='bwr', embed_nb=True,nan_color=(1, 1, 1, 1))
[228]:
[116]:
mfcorr = []
sdfcorr = []
corr = np.zeros((len(subs)*2,len(subs)*2,len(contrastnames_epiencode)))
fig, ax = plt.subplots(nrows=1, ncols=len(contrastnames_epiencode), figsize=(3*len(contrastnames_epiencode),3))
for f,feature in enumerate(contrastnames_epiencode):
cdat = contrasts_epiencode_neo[:,:,:,f].reshape((nP,-1))
corr[:,:,f] = np.corrcoef(cdat.T)
fcorr = corr[:,:,f][np.triu_indices(len(subs)*2,k=1)]
ax[f].hist(fcorr)
mfcorr.append(np.nanmean(fcorr))
sdfcorr.append(np.nanstd(fcorr))
[117]:
xnames = contrastnames_epiencode
fig, ax = plt.subplots(nrows=1, ncols=1, figsize=(3*len(contrastnames_epiencode),3))
plt.bar(range(len(contrastnames_epiencode)),mfcorr)
plt.errorbar(range(len(contrastnames_epiencode)),mfcorr, yerr=sdfcorr, fmt=".")
plt.xticks(ticks=range(len(contrastnames_epiencode)),labels=xnames,rotation=30);
plt.axhline(y=0, color='k', linestyle='--')
#plt.ylim([0,.9]);
[117]:
<matplotlib.lines.Line2D at 0x7f0dcb82f370>
[ ]:
